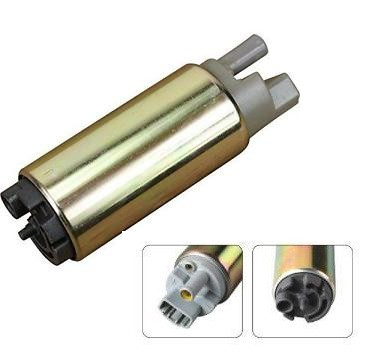

IN-TANK FUEL PUMP | AZUMI - FPI21003

Specification
Length 1/ Length 2
123
Diameter 1[mm]
38
Diameter 2[mm]
32
Pressure [Bar]
3.1
Flow [L/h]
110
Contact Group(mm)
2x3mm
Location
Fuel Supply Sys
Version Number
Number
FPI21003KIT
N/A
Crosses
Owner
Number
TOYOTA
23221-46070
TOYOTA
23221-50090
Application
10.91 ~08.97
JZS147 , Eng: 3.0L 2JZ-G#E
(Fuel Supply Sys)
10.91 ~08.97
JZS147 , Eng: 3.0L 2JZ-GTE
(Fuel Supply Sys)
10.92 ~08.97
UZS143 , Eng: 4.0L 1UZ-FE
(Fuel Supply Sys)
01.01 ~06.07
JCG15 , Eng: 2.5L 1JZ-FSE
(Fuel Supply Sys)
05.01 ~06.07
JCG10 , Eng: 2.5L 1JZ-FSE
(Fuel Supply Sys)
05.01 ~06.07
JCG11 , Eng: 3.0L 2JZ-FSE
(Fuel Supply Sys)
10.93 ~09.96
JZX91 , Eng: 3.0L 2JZ-GE
(Fuel Supply Sys)
09.96 ~07.01
JZX100 (TOURER V) , Eng: 2.5L 1JZ-GTE
(Fuel Supply Sys)
09.96 ~07.01
JZX101 , Eng: 3.0L 2JZ-GE
(Fuel Supply Sys)
10.92 ~09.96
JZX90 , Eng: 2.5L 1JZ-GTE
(Fuel Supply Sys)
09.96 ~07.01
JZX100 , Eng: 2.5L 1JZ-GTE
(Fuel Supply Sys)
09.96 ~07.01
JZX101 , Eng: 3.0L 2JZ-GE
(Fuel Supply Sys)
09.99 ~12.03
JZS175 , Eng: 3.0L 2JZ-FSE
(Fuel Supply Sys)
09.96 ~07.01
JZX100 , Eng: 2.5L 1JZ-GE
(Fuel Supply Sys) 1JZ-GTE, Turbo
09.96 ~07.01
JZX101 , Eng: 3.0L 2JZ-GE
(Fuel Supply Sys)
10.00 ~11.04
JZX110 , Eng: 2.5L 1JZ-FSE
(Fuel Supply Sys)
01.00 ~06.07
JZX110 , Eng: 2.5L 1JZ-##E
(Fuel Supply Sys)
05.93 ~08.02
JZA80 , Eng: 3.0L 2JZ-GE
(Fuel Supply Sys)
Certain filtration product applications may require additional fitment verification before installation due to vehicle specification variations.
Vehicle application information is provided as a guide only, and independent confirmation of compatibility is recommended prior to installation.
