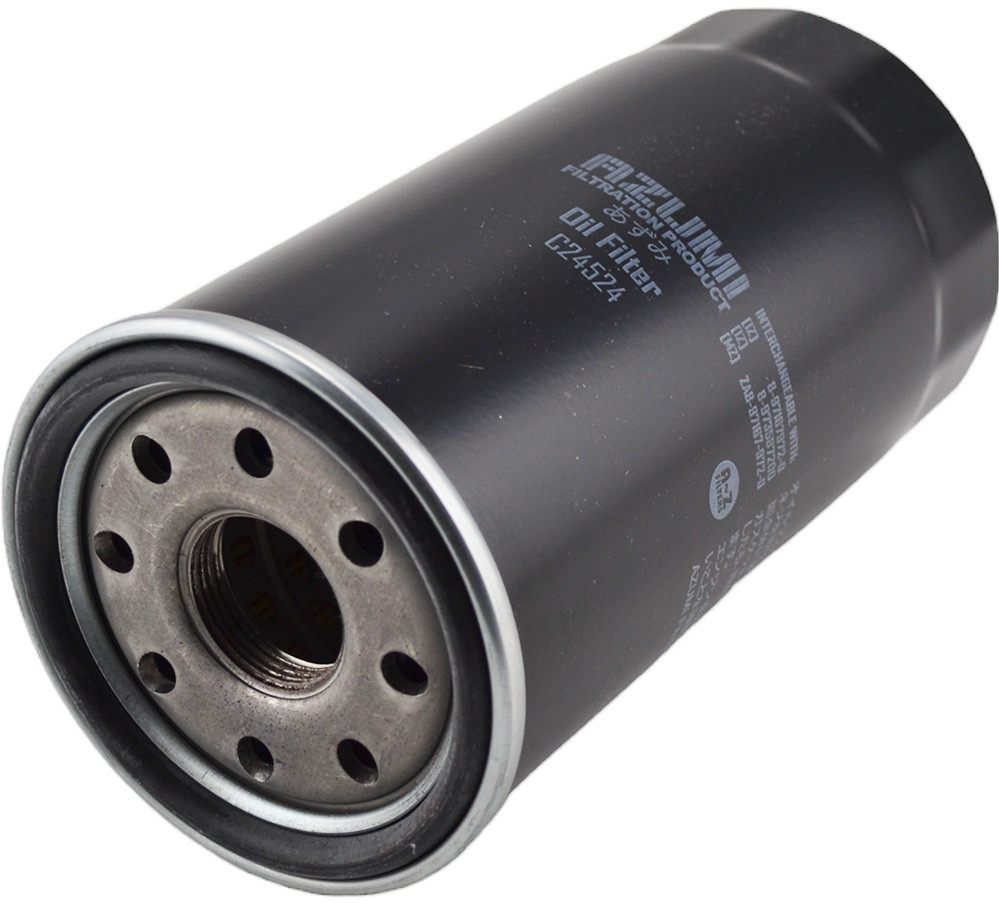

OIL FILTER (SPIN-ON) | AZUMI - C24524

Specification
Height
160
Ø Out
80
Thread
M26x1.5
Structure Material
Metal
O-Ring gasket
64x74 rnd
Valves
1.0 bar/1
type
Full Flow
Location
Eng.Lub.Sys
Crosses
Owner
Number
ISUZU
5-87610-017-0
ISUZU
5-87615-005-0
ISUZU
8-97167-972-0
ISUZU
8-97358-720-0
Owner
Number
ISUZU
V9111-0021
MAZDA
ZA8-97167-972-0
NISSAN
AY100SZ005
Application
03.98 ~09.02
UBS73 , Eng: 3.0L 4JX1-T
(Eng.Lub.Sys)
03.05 ~10.13
UCR85 , Eng: 3.0L 4JJ1-TC
(Eng.Lub.Sys)
02.98 ~09.02
UBS73DW , Eng: 3.0L 4JX1-T
(Eng.Lub.Sys)
02.98 ~09.02
UBS73GW , Eng: 3.0L 4JX1-T
(Eng.Lub.Sys)
05.02 ~06.12
TFS86H , Eng: 3.0L 4JK1
(Eng.Lub.Sys)
06.03 ~
TFS85 , Eng: 3.0L 4JJ1-TCX
(Eng.Lub.Sys)
10.06 ~01.12
TFR85 , Eng: 3.0L 4JJ1-TC
(Eng.Lub.Sys)
08.08 ~
TF_85 , Eng: 3.0L 4JJ1-TCS
(Eng.Lub.Sys)
10.08 ~12.11
TF_86 , Eng: 2.5L 4JK1-TCX
(Eng.Lub.Sys)
01.09 ~12.11
TFS85H RHD , Eng: 3.0L 4JJ1-TCS
(Eng.Lub.Sys)
07.06 ~01.13
TFS85 RHD SUV TH 2ROW , Eng: 3.0L 4JJ1-TCX
(Eng.Lub.Sys)
05.98 ~08.02
UES73FW , Eng: 3.0L 4JX1-T
(Eng.Lub.Sys)
01.04 ~12.08
TFR86 , Eng: 2.5L 4JK1-TCX
(Eng.Lub.Sys)
01.04 ~12.11
TFS85H LHD , Eng: 3.0L 4JJ1-TCS
(Eng.Lub.Sys)
01.04 ~12.11
TFS85H RHD , Eng: 3.0L 4JJ1-TCS
(Eng.Lub.Sys)
10.08 ~07.10
TFR86 , Eng: 2.5L 4JK1-TCX
(Eng.Lub.Sys)
Certain filtration product applications may require additional fitment verification before installation due to vehicle specification variations.
Vehicle application information is provided as a guide only, and independent confirmation of compatibility is recommended prior to installation.
